StingRay 5 35th Anniversary Hero Image
Watch Videos Buy Now
StingRay 5 35th Anniversary Logo

1987年、アーニーボール・ミュージックマンは伝説的なStingRay 5ベースを生み出し、現代の5弦ベースのスタンダードとなりました。この35周年記念モデルは、世界で最も象徴的なベーシストたちに愛用されてきた、時代を超えたErnie Ball Music Manのデザインに敬意を表しています。アッシュ・ボディに薄いメイプル単板のスポルテッド・メイプル・トップを採用、スポルテッド・サンバースト・フィニッシュが標準となります。ローステッド・フィギュアド・メイプルのネックやエボニー指板、コッパー・パールセント・ブロック・インレイも特徴。ハイグロス・フィニッシュによる仕上げにより、最高の弾き心地と演奏性を実現しています。高出力のネオジム製StingRay 5ピックアップは、パワフルな低音域と独特の中音域のパンチを出力、軽量なハードウェアは確かな安定性を実現します。シングル。ハムバッカー・モデルは225本、デュアル・ハムバッカーのモデル25本の限定生産で、すべてのAnniversary StingRay 5には認定証が付属します。

StingRay 5 35th Anniversary Logo

オプション

Spalted Sunburst

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

StingRay 5 35th Anniversary Highlights

StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Slide
StingRay 5 35th Anniversary Highlight
Spalted Sunburst Finish

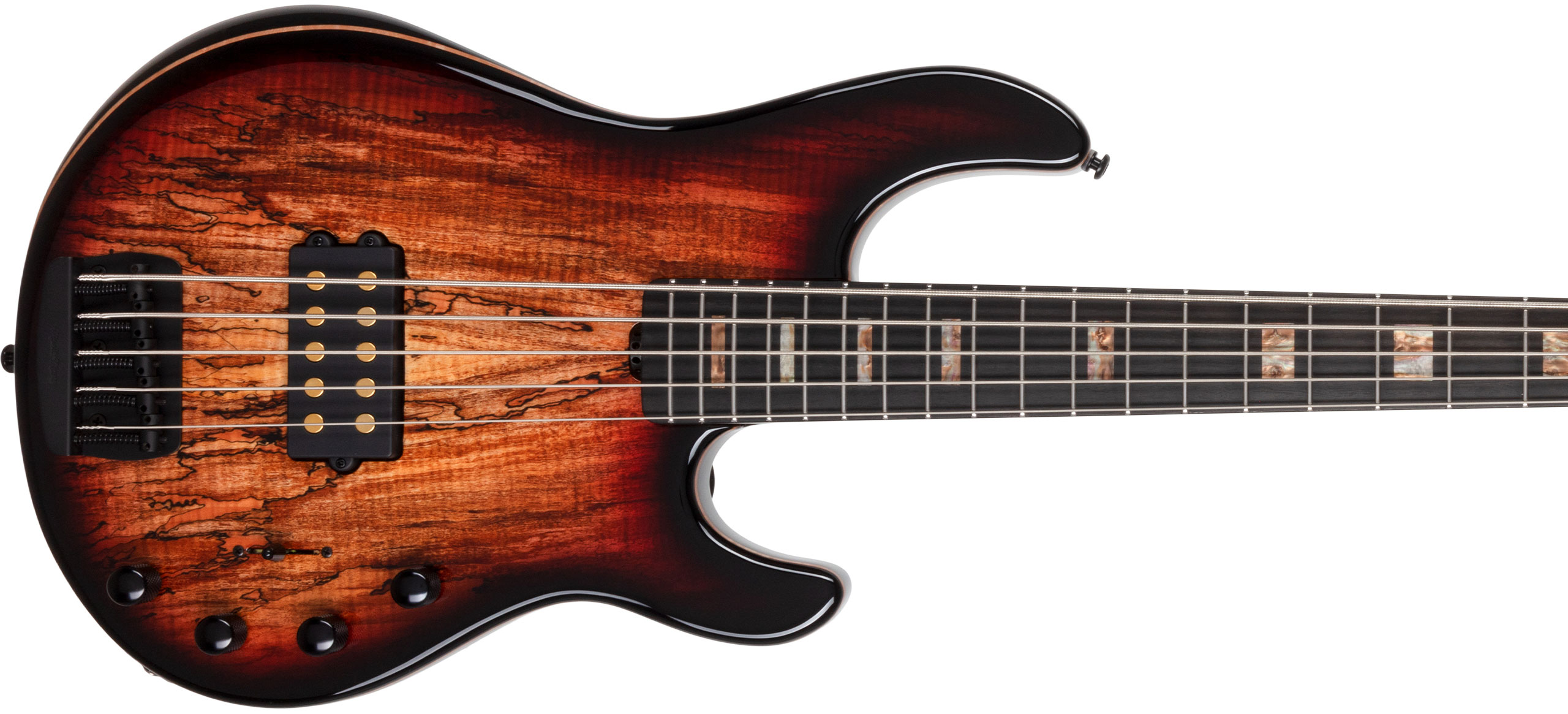

Ash body with a spalted maple top finished in a special anniversary Sunburst finish
StingRay 5 35th Anniversary Highlight
Roasted Figured Maple Neck
Flame-figured roasted maple neck with ebony fretboard and pearlescent block Inlays
StingRay 5 35th Anniversary Highlight
All Black Hardware
Black hardware with black pickup cover accented with unique gold pole piece highlights

Legendary SR5 Turns 35 Premium Tonewoods

This 35th-anniversary edition is an actual work of art with a premium ash body featuring a maple-veneered Spalted Sunburst maple top. The roasted maple neck and ebony fretboard are adorned with copper pearlescent block inlays, and the entire front and back of the flame-figured neck are buffed to a striking high gloss finish.

Iconic Tone and Feel

The SR5’s robust low-end and fat, punchy midrange is world-famous. The low “B” string is most revered as it remains tight and full at a popular 34” scale length. This 35th SR5 faithfully recreates this iconic tone utilizing powerful neodymium magnets delivering more output and a wider range of frequencies.

18-VOLT PREAMP

An 18-volt 3-Band EQ preamp is utilized for extra clean headroom, letting you dial in a wide range of popular bass tones from modern punch to classic vintage without clipping or distortion.

Specifications, Schematics & More

Specifications StingRay 5 35th Anniversary
Model StingRay 5 35th Anniversary
Size 13-3/8" wide, 1-3/4" thick, 45-3/4" long (34.0 cm wide, 4.5 cm thick, 116.2 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors Spalted Sunburst
Bridge Standard - Music Man® Black plated, hardened steel bridge plate with stainless steel saddles
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 9" (22.9 cm) long
Frets 22 - High profile, wide, Stainless Steel
Neck Width 1-3/4" (44.5 mm) at nut 2-3/4"" (69.9 mm) at last fret
Neck Wood Select roasted maple
Fingerboard Ebony
Fret Markers Copper Pearloid Atlante Blocks
Neck Finish High gloss polyester
Neck Colors Natural
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 3-band active preamp with 18 volts of headroom; vol, treble, mid, bass
Switching H: 3-way lever pickup selector; HH: 5-way lever pickup selector
Pickups Single or Dual Humbucking with Neodymium Magnets
Left Handed No
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)

id => 108

iid => 108

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2022-10-30 09:47:50

updated_at => 2022-10-30 09:47:50

Specifications StingRay 5 35th Anniversary
Model StingRay 5 35th Anniversary
Order 0
Size 13-3/8" wide, 1-3/4" thick, 45-3/4" long (34.0 cm wide, 4.5 cm thick, 116.2 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors Spalted Sunburst
Body Bindings
Bridge Standard - Music Man® Black plated, hardened steel bridge plate with stainless steel saddles
Pickguard
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 9" (22.9 cm) long
Frets 22 - High profile, wide, Stainless Steel
Neck Width 1-3/4" (44.5 mm) at nut 2-3/4"" (69.9 mm) at last fret
Neck Wood Select roasted maple
Fingerboard Ebony
Fret Markers Copper Pearloid Atlante Blocks
Neck Finish High gloss polyester
Neck Colors Natural
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 3-band active preamp with 18 volts of headroom; vol, treble, mid, bass
Switching H: 3-way lever pickup selector; HH: 5-way lever pickup selector
Pickups Single or Dual Humbucking with Neodymium Magnets
Left Handed No
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)
