世界的に有名なベース用エフェクター/アンプ・メーカーであるDarkglass Electronicsと共同で設計されたDarkRayは、新しいサウンドの可能性を引き出します。 すべての核となるのはその音色です。このモデルでは、Darkglass ElectronicsがDarkRayのために特別に設計した、モダンな2バンドEQのプリアンプが搭載されています。このプリアンプは、クリーン/アルファ(ディストーション)/オメガ(ファズ)という、非常に個性的で有用なサウンドを持つ3つのモードがあります。どちらのディストーション回路も、オンボードのゲイン・ノブとブレンド・コントロールによって、プレイヤーの好みに合わせて完全にミックスすることが可能です。ロー・エンドを損なうことなく、驚異的なクリーン、わずかなゲイン、残忍なファズ・トーンを得ることができるのです。LEDリングと3ウェイ・レバー・スイッチにより、ベースがどのモードにあるかが表示されます。 ネオジウム・ハムバッキング・ピックアップ、ローステッド・メイプル・ネック、コンフォート・コンタード・ボディ、22ステンレス・フレット、おなじみの4+1ヘッドストック・コンフィギュレーションなど、まさにStingray Specialと呼ぶにふさわしいモデルです。

DarkRay 5 Logo

オプション

Dark Rainbow

Gold Bar

Starry Night

カスタム・オプション:

モデル:
カラー:
ネック:
ピック・ガード:
ハードウェア:

コード
000-00-00-00

DarkRay 5 Highlights

DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Highlight
DarkRay Preamp

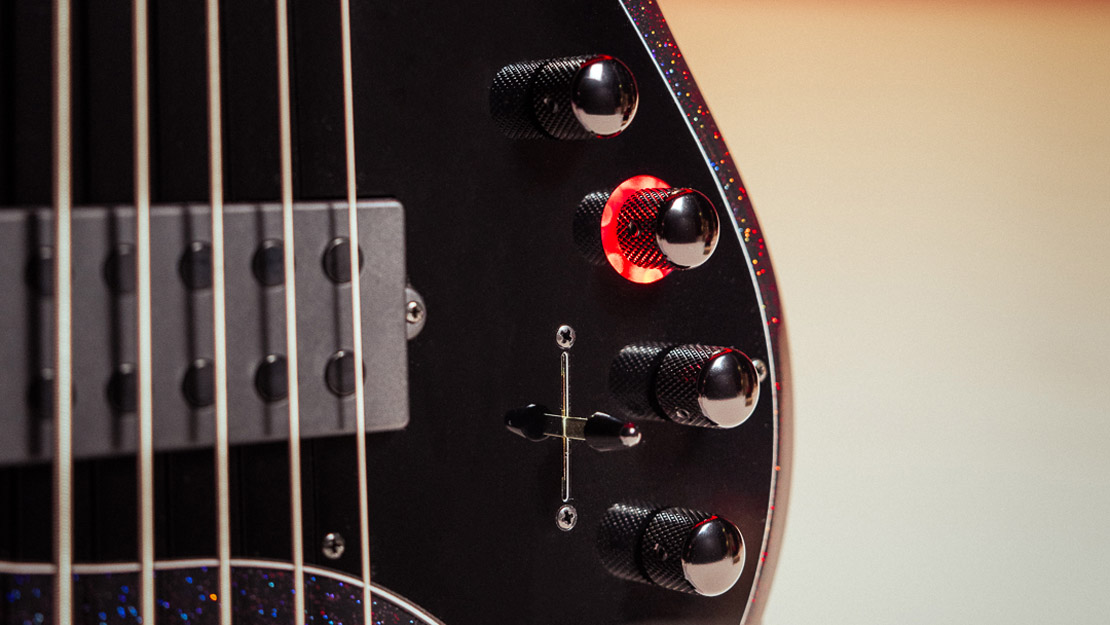

The 2-band preamp includes volume, treble, and bass controls with a separate blend and gain knob to achieve the desired tone and output.
DarkRay 5 Highlight
Roasted Neck
The DarkRay features a roasted maple neck, ebony fingerboard with stainless steel frets, and matte black hardware.
DarkRay 5 Highlight

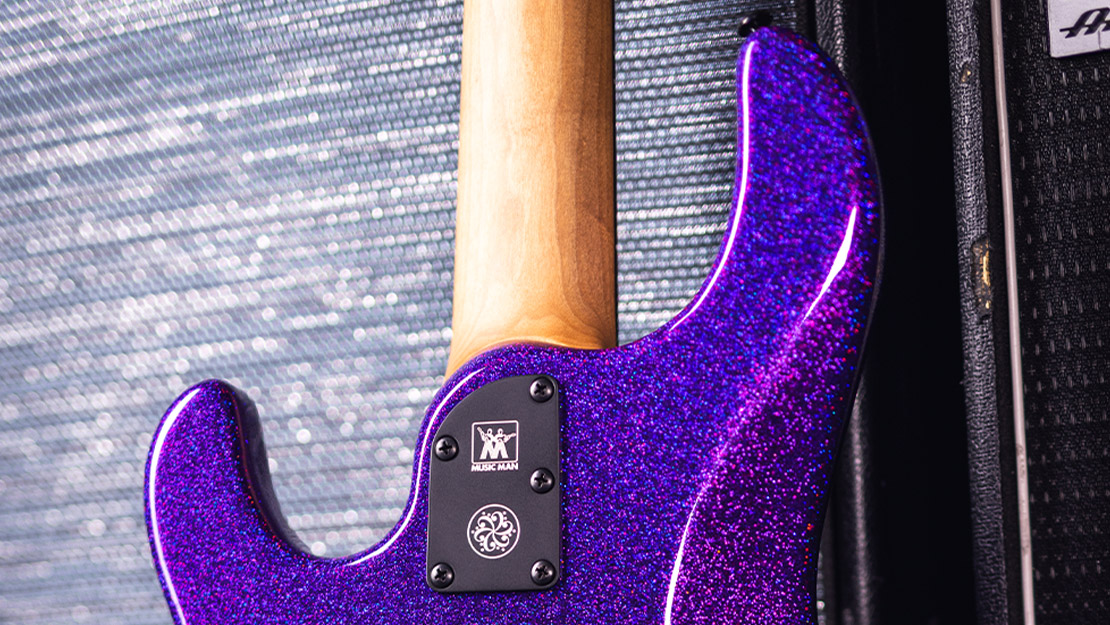

5-Bolt Neck
The neck is secured by a 5-bolt attachment with perfect alignment and no shifting. A special Darkglass logo is applied to the neck plate to signify the Darkray edition bass.

StingRay Meets DarkGlass

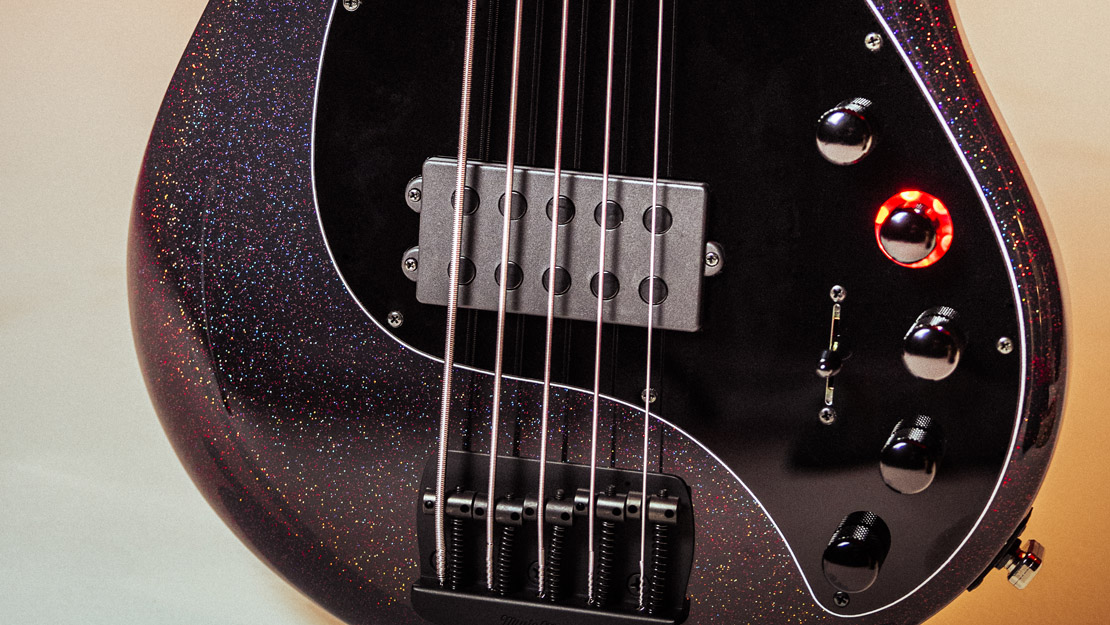

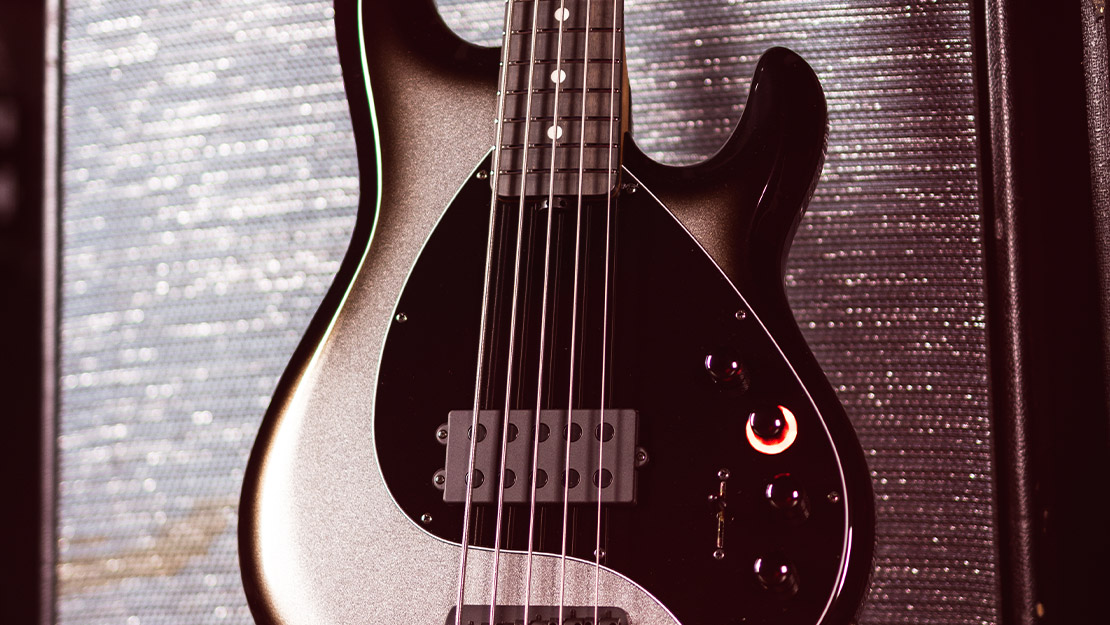

Custom Darkglass® clean 2-band active preamp

The DarkRay is equipped with a new modern 2 Band preamp that Darkglass specifically designed. The preamp is extremely clean and quiet with adjustable volume, gain, bass, treble, and blend controls to achieve the desired tone.

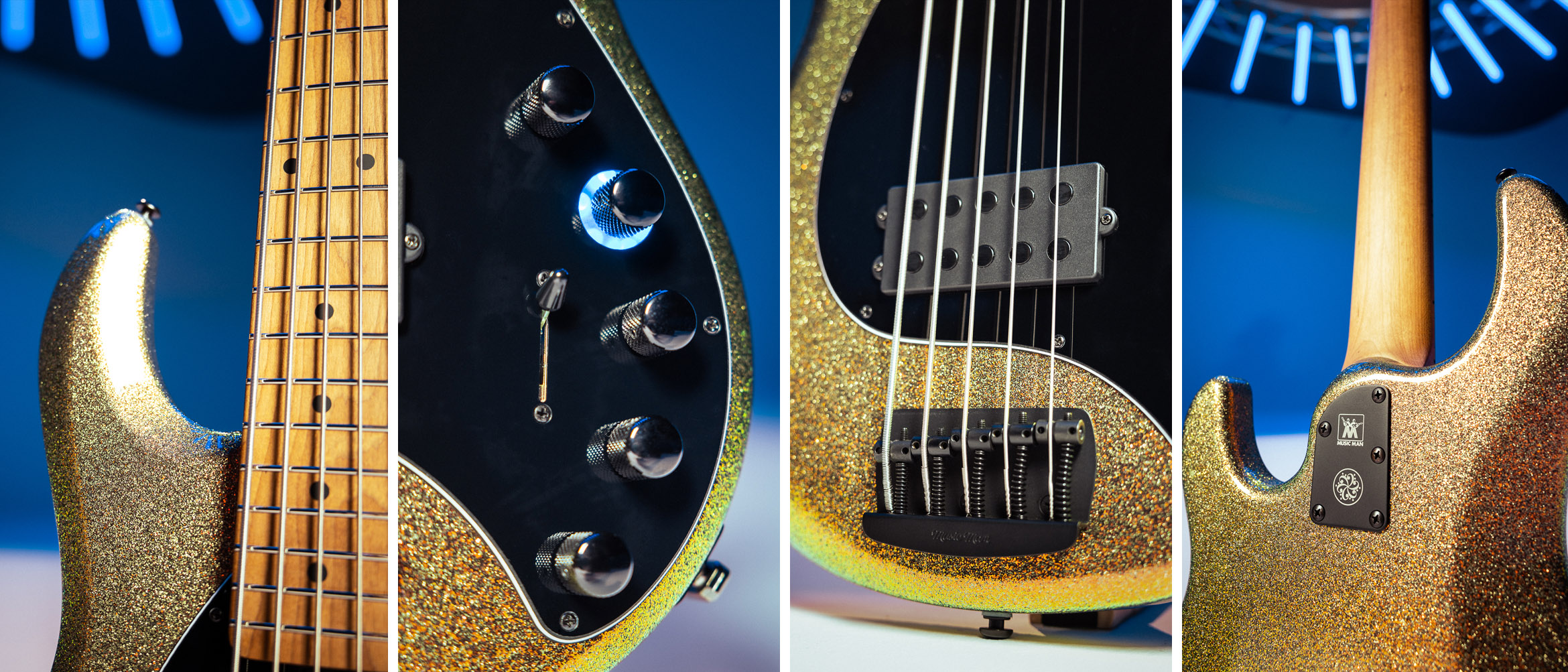

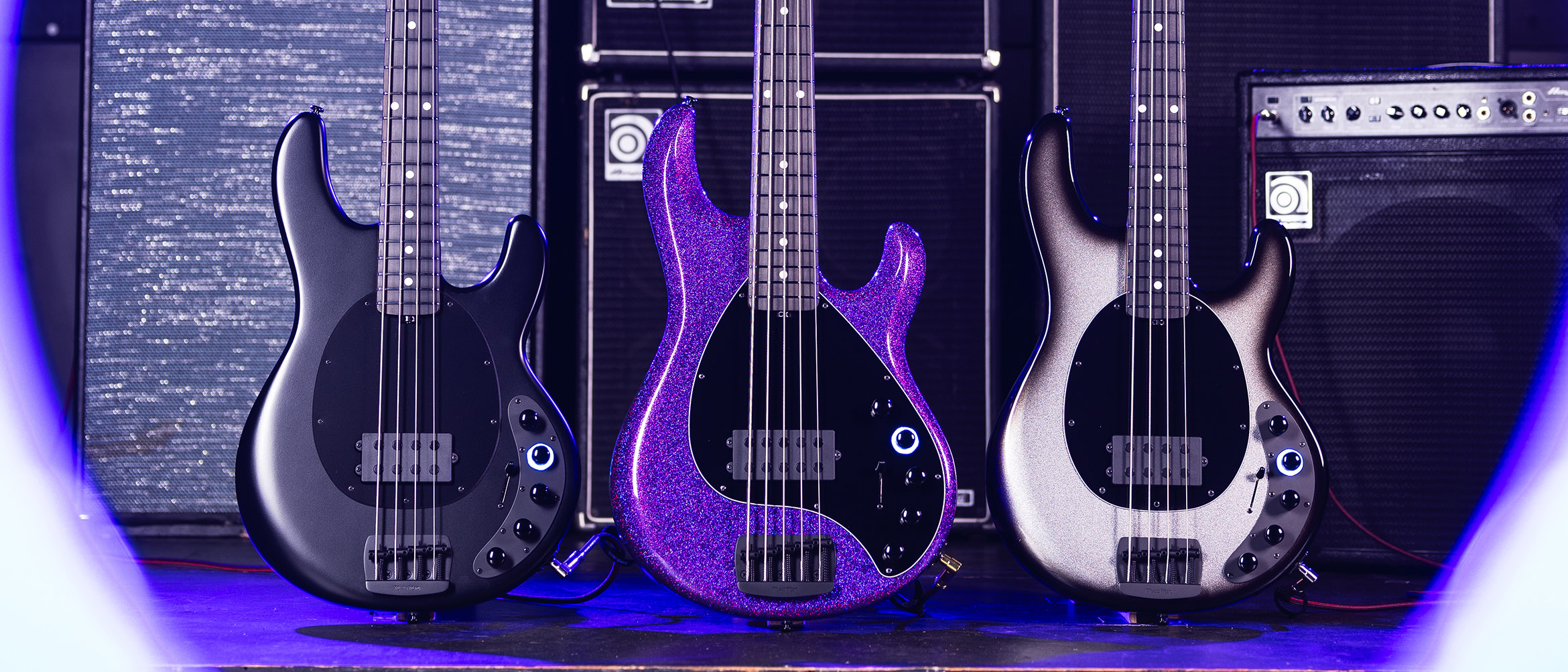

Alpha and Omega

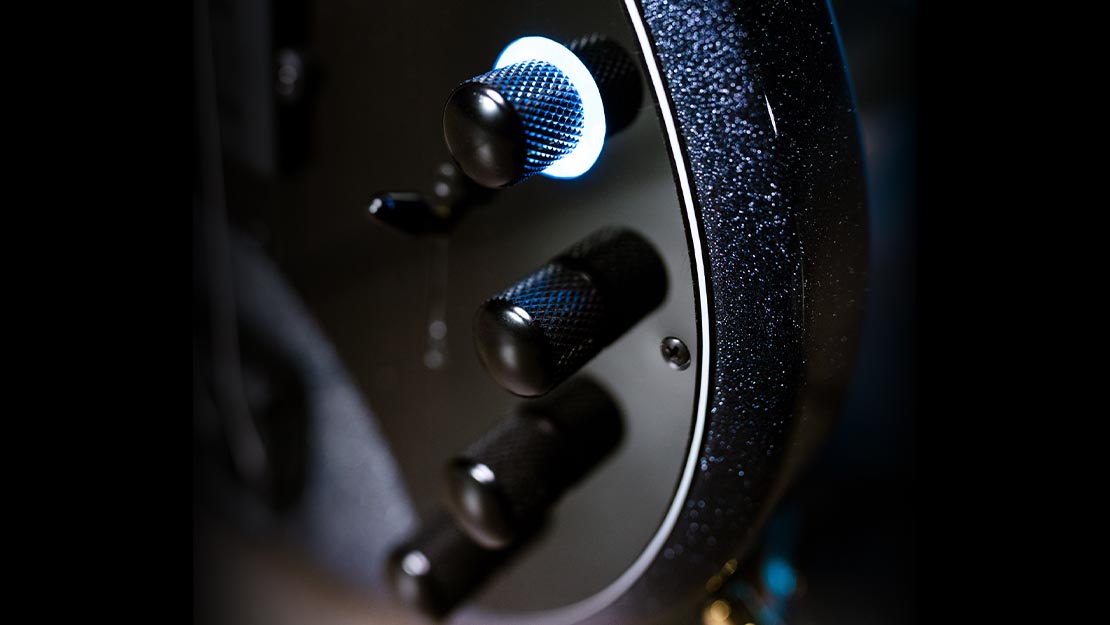

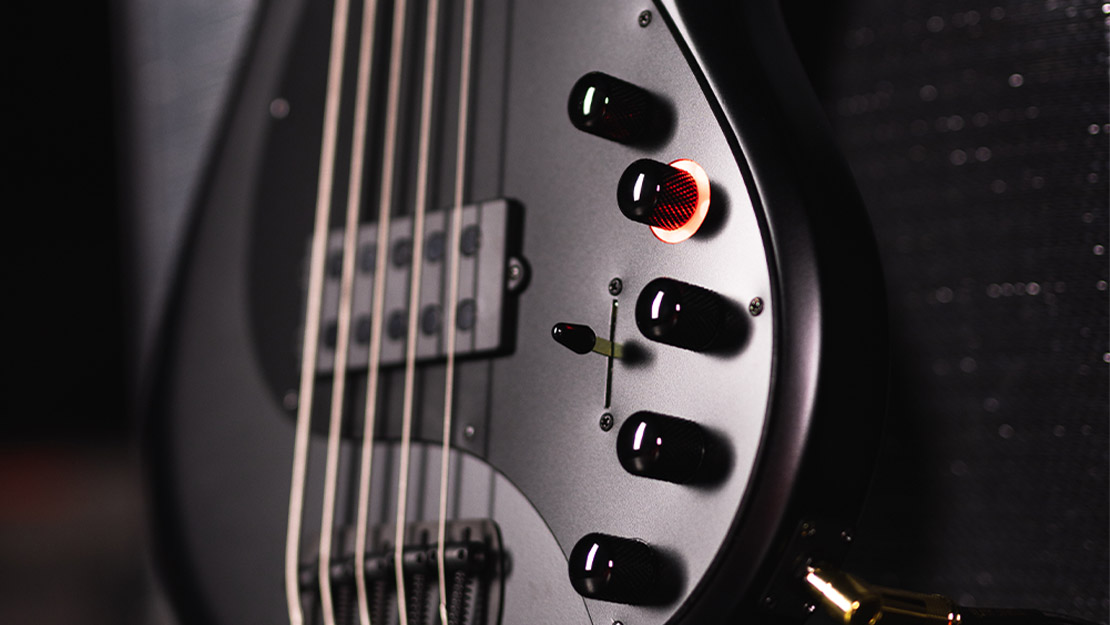

The Darkglass preamp offers two highly regarded drive circuits, Alpha(tight distortion) and Omega(fuzz). Both distortion circuits are fully mixable via an onboard gain knob and blend control manipulated to the user’s preference with no low-end loss. Via the 3-way lever switch, a bright color-coded LED ring is illuminated, signifying which mode the bass is in.

DarkRay = StingRay

The DarkRay bass is every bit a Stingray Special with neodymium humbucking pickup, roasted maple neck, comfort contoured body, 22 stainless steel frets, all black hardware, and the familiar 3+1 headstock configuration.

Specifications, Schematics & More

Specifications DarkRay 5
Model DarkRay 5
Size 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long)
Body Wood Select Hardwood
Body Finish High Gloss Polyester
Bridge Vintage Music Man® top loaded Black plated, steel bridge plate with vintage Black plated steel saddles
Pickguard Black
Scale Length 34"
Neck Radius 11" (27.9 cm)

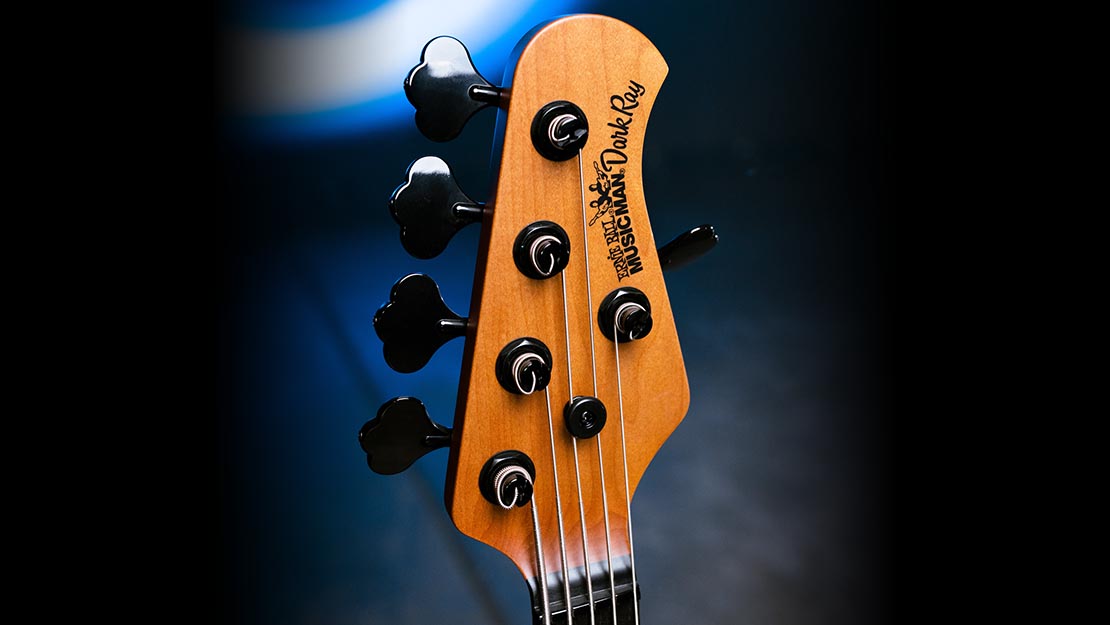

Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide, stainless steel
Neck Width 1-3/4" (44.5 mm) at the nut; 2-3/4" (69.9 mm) at the last fret
Neck Wood Roasted Maple
Fingerboard Ebony (Roasted Maple on Gold Bar)
Fret Markers Dot
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls vol, gain, blend, treble, bass
Switching 3-way lever distortion selector; Preamp Only, Preamp+Alpha Distortion, Preamp+Omega Distortion
Pickups Single Humbucking with Neodymium magnets
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)

id => 103

iid => 103

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2022-05-16 11:05:16

updated_at => 2022-05-16 11:05:16

Specifications DarkRay 5
Model DarkRay 5
Order 0
Size 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long)
Body Wood Select Hardwood
Body Finish High Gloss Polyester
Body Colors
Body Bindings
Bridge Vintage Music Man® top loaded Black plated, steel bridge plate with vintage Black plated steel saddles
Pickguard Black
Scale Length 34"
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide, stainless steel
Neck Width 1-3/4" (44.5 mm) at the nut; 2-3/4" (69.9 mm) at the last fret
Neck Wood Roasted Maple
Fingerboard Ebony (Roasted Maple on Gold Bar)
Fret Markers Dot
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls vol, gain, blend, treble, bass
Switching 3-way lever distortion selector; Preamp Only, Preamp+Alpha Distortion, Preamp+Omega Distortion
Pickups Single Humbucking with Neodymium magnets
Left Handed
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)
